Mixed bed polisher - MBP

Please contact for support

For traditional water treatment systems, demineralization technology can be applied with filter columns containing separate cation and anion exchange particles. However, at some higher requirements, it is necessary to use the MBP system (Mix-bed polisher) or the Mixed exchange particle water polishing system. The filter columns in the MBP system usually include a mix-bed made of pre-mixed anion and cation exchanger particles from the manufacturer. The advantage of the MBP system is that it can bring water to a resistance level of 18.2 MΩ.cm, which is easy to operate.

AnThy standard MBP system includes:

  • Source and circulating water tank
  • Water supply pump
  • MBP column system
  • UV lamp
  • Bacterial filter

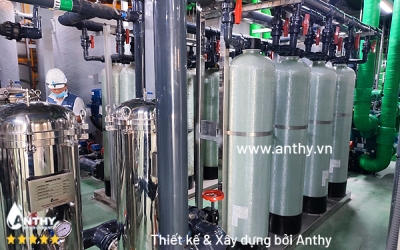

20m³/hr Mix-bed polisher
  1. Location: Ha Nam Province
  2. 1 active line, 1 spare line
  3. Control by PLC
  4. NSF certified tank
  5. High quality MB resins
  6. Pipe material CPVC - Sekisui
  7. Resistivity 18.25 MΩ /cm
  8. Final water storage tank: FRP

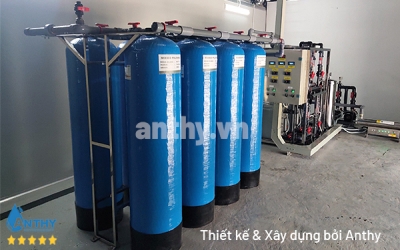

12m³/hr Mixed-bed polisher
  1. Location: Bac Giang Province
  2. 1 active line, 1 spare line
  3. High-class segmentation
  4. High quality filter tank
  5. Mixed bed resin: MB-115
  6. Pipe material Clean PVC
  7. Resistivity 18.25 MΩ /cm
  8. Final water storage tank: FRP
5m³/hr Mixed-bed polisher
  1. Location: Vinh Phúc Province
  2. 1 active line, 1 spare line
  3. High-class segmentation
  4. High quality filter tank
  5. Mixed bed resin: MB-1518
  6. Pipe material CPVC - Taiwan
  7. Resistivity 18.25 MΩ /cm
  8. Final water storage tank: FRP

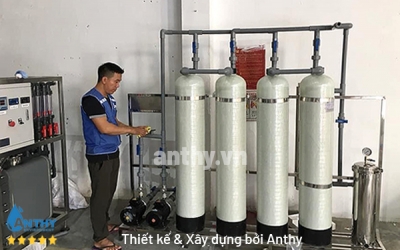

3m3/hr mixed bed polisher
  1. Location: Binh Duong
  2. High quality filter tank
  3. MB-115 mixed bed resin
  4. Pipe material Clean PVC
  5. Resistivity 18.25 MΩ /cm
