CLARIS® series filter cartridges
Introduce:
- Claris® is Pall Water's line of compressed cotton filters
- The filter element is made of polypropylene in the form of pressed cotton fibers
- Brand: Claris®
- Manufacturer: Pall Water.
- Origin: USA
Application:
- Filters water, removes scale and solids in water
- Protection of RO membranes in domestic and industrial pure water RO filtration systems
- Hospital water filtration, Pharmaceutical industry
List
| Model | µm | Length | OD | ID | End cap |

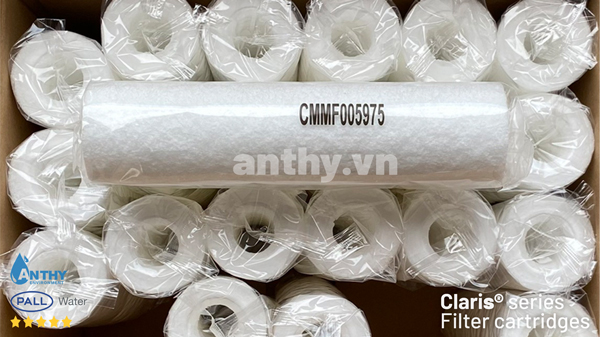

| CMMF005975 | 5 | 10" | 2.1/2" | 1" | DOE |
| CLR120 | 1 | 20" | 2.1/2" | 1" | DOE |
| CLR130 | 1 | 30" | 2.1/2" | 1" | DOE |
| CLR140 | 1 | 40" | 2.1/2" | 1" | DOE |
| CLR520 | 5 | 20" | 2.1/2" | 1" | DOE |
| CLR530 | 5 | 30" | 2.1/2" | 1" | DOE |
| CLR540 | 5 | 40" | 2.1/2" | 1" | DOE |
| CLR1020 | 10 | 20" | 2.1/2" | 1" | DOE |
| CLR1030 | 10 | 30" | 2.1/2" | 1" | DOE |
| CLR2020 | 20 | 20" | 2.1/2" | 1" | DOE |
| CLR2030 | 20 | 30" | 2.1/2" | 1" | DOE |
Material:
- Filter core: Polypropylene
- Gaskets: Silicone, EPDM, Viton A, Buna N, FEP...
- Core Structure: Polypropylene
Description:
- Pall's proprietary "pore" structure manufacturing technology improves ultra-fine residue retention
- Thermal extrusion fiber intelligent stiffener provides excellent efficiency
- The manufacturing material is on the FDA-listed list
- Manufactured from materials that allow food contact for application in Title 21 of the United States Code of Federal Regulations
- The product complies with EU Directive 2002/72/EC for food contact plastics (in simulants A, B, C and D)
Product purity:
- Claris cartridges are free of surfactants, antistatic agents, glues and adhesives
- All polypropylene components meet USP biosafety specifications for Type VI-121˚C plastics (not including seals)
Specifications:
- Filtration Level: 1, 3, 5, 10, 20, 30, 50, 75 m
- Filter length: 10", 20", 30" 40"
- End cap: DOE, SOE flat, SOE fin...
- Maximum differential pressure:: 3.45 bard at room temperature (AMB); 1.72 bard at 60˚C
- Replace when differential pressure at: 2.4 bard
