Introduce:

• Nexis ® T is a more advanced line than the popular Claris  from Pall
• The filter element is made of polypropylene in the form of pressed cotton fibers
• Performance, durability testing using the ASTM F-795 test procedure to determine the performance of the core filter
• Brand: Nexis® T
• Producer: Pall Water
• Origin: Japan

Model

Features and benefits:

• Advanced technology CoLD Melt™ fiber patent protection
• Filtration efficiency >90% according to ASTM F-795 . test
• Continuous pore structure available for pretreatment and ultrapure filtration
• Center-hardened core technology exclusive enhance physical and chemical resistance (0.5 - 10 µm)
• Withstands large contaminant concentrations even at high pressure differentials
• Computer-controlled CoLD Melt™ manufacturing process for high precision, increased product consistency
• Pure polypropylene material
• Thermally bonded structure, without the use of binders, surfactants, other plastic additives
• Available in 2 metal or plastic connectors

Application:

• Remove scale, filter drinking water, pre-filter protects RO membrane
• Traps for the food industry (sugar syrup production); Used for food industry, electronics and industries that need purified water
• Hospital water filtration, Pharmaceutical industry

Material:

• Filter core: Polypropylene
• Gaskets:  Silicone, EPDM, Viton A, Buna N, FEP...
• Core Structure: Polypropylene

Specifications:

• Filter level: 0.5, 1, 3, 5, 7, 15, 20, 25, 30, 40, 50, 75, 100, 120, 150, 200 µm
• Filter length: 10", 20", 30" 40"
• Connection: DOE, SOE flat, SOE fin...

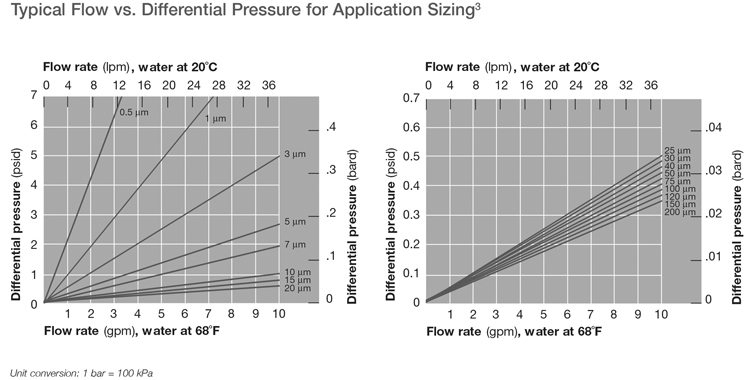

• Maximum differential pressure: 4.14 bard at 30˚C; 1.03 bard at 82˚C with filter grade 0.5 - 10 µm
• It is recommended to replace the core with a new one when differential pressure 2.4 bard
